VM-70X ATV Transmitter

Videolynx VM-70X 4 Watt+
4 Channel 70cm ATV
Transmitter Module.. $199


September 2014 Price List of ATV Products,

Scroll down or click on the Ham Band headings below to go directly:
420-450 MHz 70cm Band - 902-928 MHz 33cm Band - 1240-1300 MHz 23cm Band - 2390-2450 MHz 13cm Band - ATV Repeater
Miscellaneous ATV Products and Accessories - OSD boards, Gunnplexer modulator, connectors, etc.

HOW TO ORDER
Call 1-626-447-4565 Monday through Thursday between 8 AM and 5:30 PM Pacific time with your Visa or Mastercard ready and list of model numbers. Orders called before noon Pacific time usually ship the same day. Or you can download our Order Form, fill it out and postal mail or email it back to ATVinfo at hamtv.com. Current time in Arcadia California is

You must be a FCC licensed radio amateur to legally operate our equipment in the USA. Therefore, we only sell to and support licensed radio amateurs with a few exceptions such as city and state emergency communications groups, Amembassy AFRTS, or other legal uses - see Legal uses and FCC Rules. Any business credit card or check may not be accepted unless for a legal use and we receive a filled out and signed Responsible Ham form.

Credit Card Orders - We only accept Visa or Mastercard and there is a $25 minumum order.
Licensed radio amateurs need to use their personal credit card, not that of a third party.
If the card is owned (the entity that pays the card bills) by a business, school or government agency, download the Responsible Ham form.
If the card owner is outside the USA and not a ham, download the Foreign End User form.
We do not share your credit card information with any service providers and is kept as secure as possible.

Checks or money orders must be in US dollars drawn on a USA bank and except for US Postal Money Orders, shipment waits 3 weeks for the check to clear. No minimum order for checks or money orders. Please call or email with your list of items for us to quote the amount to add for shipping, handling and insurance before sending the check.

Purchasing Agents: We do no billing. Absolutely no purchase orders, pro-forma invoices, formal quotes, bank transfers, Fed ID numbers, etc. - our price structure is set up for the least cost sales of products directly to individual licensed radio amateurs. A paid invoice is sent in the same box with the shipped equipment, no other invoice copy will be mailed.

Government agencies buying ATV gear from us for their ARES, RACES or Homeland Security Emergency Communications group can purchase from us with a Visa, Mastercard or check when placing the order and need to download and have the Responsible Ham fill out the form and send to us before shipment. Click on Sales Policies for all our sales policies.

Manuals - Only email requests by licensed radio amateurs for lost manuals of our equipment will be honored - there is no cost. Also you can click on the model numbers below in our products and prices section for data sheets on current products.
Email requests to ATVinfo at hamtv.com must include your call letters, model number, revision letter and year as etched on the board, and put ATV manual request in the subject line.
Manuals or data sheets in PDF or JPEG format will be sent as an attachment back to you for your own personal use. Copies or listing on other web sites are not authorized except by written permission.

Repairs - First, call or email to ATVinfo at hamtv.com with ATV repair in the subject line if you need trouble shooting help with our manufactured gear or to make sure there is a problem with the product. Equipment manufactured by another company, even though sold by us we might be able to help you trouble shoot, but you must contact the manufacturer for their repair and warranty policy. If you need an item repaired by us, download, fill out and include with the item our Repair Authorization form. Most items will be turned around within 2 days. Our policy is that we will determine if the problem is due to our workmanship or materiels or something on your end. If we find that it is due to our workmanship or materiels in less than reasonable life time, you will not be charged for the service and parts. If we determine the problem happened at your end, boards and downconverters will be repaired at $40 plus parts and packaged units at $80 plus parts, insurance, shipping and handling.

Download our Catalogue and other forms

• • Full 10 page June 2014 ATV catalogue - pdf file

Order Form Use this form to order by postal mail
Sales Policies Information on shipping, repairs, returns, etc.
Repair Authorization form - must be included with equipment before servicing.

• • For those purchasers who are not licensed radio amateurs but qualify, we require that a Responsible Ham Certification form or a Foreign End User Certification form be filled out and postal or emailed to us before we will accept the order.

These pages are in PDF format. If you wish to access the PDF file but do not have the Adobe Acrobat Reader installed on your computer system, you can DOWNLOAD this free software from Adobe.
Open Acrobat first, then open the .pdf file.

All our current products and prices are listed below.
Scroll down or click on the ham band, repeater or misc. headings.
Click on the model number for data sheet or detailed information.
• Only California ship to addresses need to add sales tax - Los Angeles County 9.0% and all others 8.0%.. Refer to the printed catalogue pages 8 & 9 for our full sales terms and policies. Products are designed for use by licensed Radio Amateurs.
• All board level products listed are soldered, tested and shipped to you with a data sheet and respective application notes. You provide your own enclosure, wire, knobs, connectors, hardware, etc. - sorry we have no kits or bare PC boards except where noted. Most construction parts can be obtained from Radio Shack, Mouser Electronics or Digi-Key.

Check out our Specials & Surplus page often.

Products and Prices below were effective September 1, 2014
*Price of drop shipped items from the manufacturer include shipping in the contiguous USA.
Unless you specify a different shipping method, shipping via US Priority Mail, insurance and
handling costs will be added to all orders sent from us.

Scroll down or click on the Ham Band headings below to go directly:

420-450 MHz 70cm Band - 902-928 MHz 33cm Band - 1240-1300 MHz 23cm Band - 2390-2450 MHz 13cm Band - ATV Repeater
Miscellaneous ATV Products and Accessories - OSD boards, Gunnplexer Modulator board, RF Connectors, etc.



Click on
model number
for more info
70cm 420-450 MHz Band
Call your order to 1-626-447-4565
Catalog
Page
Price
Each
70cm Transmitting
We stock the Videolynx 70cm transmitter modules

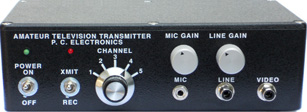

TX70-5s TX70-5s>4W AM ATV Transmitter
Designed primarily for emergency communications groups, it's ready to go in a rugged die cast aluminum enclosure.
4 channels 439.25 (cable ch 60), 434.0, 427.25 & 426.25 MHz.
Line and Mic audio inputs. 2 ft coax to TV or downconverter included.
Type N jack 50 Ohm antenna output. manual.
In Stock
1 $499
434 TX70-5s hard hat cam WB6YSSVideolynx, AM Mini-Transmitter, 434 MHz, 50-100mW, video only
9V Alkaline battery lasts 8 hrs - 40mA draw.
Great for small R/C vehicles - 1.5 oz.
Receive on 434 MHz or cable channel 59.
See ATV Hat Cam App Note.
In Stock
5 $99
Z70A Z70AVideolynx, AM ATV Transmitter module with line level sound, 50-100mW
Runs on 9V@250 mA and weighs 3 oz. 4 channels 439.25, 434.0, 427.25 & 426.25 MHz.
Perfect for public service events up to 1 mile line of sight using OAL 5L-70cm antennas.
See ATV Pouch App Note
5 $149
VM-70X VM-70X moduleVideolynx, AM ATV Transmitter module with sound, adjustable to 5 W pep
4 channels 439.25, 434.0, 427.25 & 426.25 MHz
Requires +11 to +14 Vdc @1.5A, 2.5 oz.
See our app note on this module.
5 $199

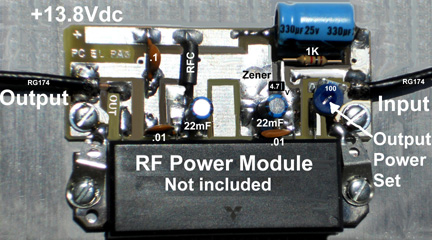

PA5 board PA5 moduleAmplifier board with all parts, less power module, soldered ready for your RA30H4047M, M57716, M57745 or S-AU4 power module - Check RF Parts for Module availability, heatsink and chassis. Build a 50mw in / 25 Watts p.e.p. out, linear all mode amp and drive from a Videolynx 434 or Z70A. Specify which power module you will be using at time of order. Special
Price
Reduced
$20
TR-1b TR-1b boardT/R Antenna Relay board. Mounts on Type N UG-58 or SO-239 50 Ohm RF chassis mount jack, switches antenna coax up to 25w xmtr / rcvr, also has spdt relay to switch DC power between downconverter and transmitter (1A contacts).
Special, 2 for $25.
2, Special
Price
Reduced
$15
TXTVb TXTVb boardATV Transmitter board, 1 to 10 mW RF out. Specify kit for 70cm test generator or 2M for transverting to a higher band.
Requires 8 to 14 Vdc at 40 mA. Crystals available from International Crystal Mfg catalog #473370 Fo/4.
Special 2 for $35, 7 for $99
Special
Price
Reduced
$20
Crystal CrystalHC-50U Plug-in type crystal used in our older transmitters are no longer stocked. Also see our remaining stock of misc. crystals at $5 each. For other frequencies we suggest ordering directly from International Crystal Mfg - 800-725-1426 - give catalog #473370 and crystal frequency. See your transmitter or downconverters manual or data sheet for the crystal formula. 9 $5
70cm Receiving
TVC-4S TVC-4sWe are currently out of downconverters and have no plans to make more. Any TV with a cable channel tuner can be used to receive ATV on ch57-60. Check eBay and QRZ.com On Line Swapmeet for our old models if you do not have a TV with a cable tuner. - -
Rch3 Rch3 receiverChannel 3 TV Receiver gives analog video and line audio output when connected to our TVC-4G, TVC-4S Downconverter or TC70 Transceiver TV output. If you have a video monitor that does not have a squelch, this is great to see sync bars and weak signals in the noise for ATV DXing. See our application note. 3 $89
70cm Antennas
OAL 5L-70cm OAL 5L-70cmAntenna, Old Antenna Lab, 5 element beam, 8 dBd gain, N jack, end mounted 31" boom.
This is the best 70cm antenna for portable EmComm work.
3 $85*
OAL 10L-70cm Antenna, Old Antenna Lab, 10 element beam, 11 dBd, 61.5" boom, N jack. 3 $145*
OAL 5LX-70cm Antenna, Old Antenna Lab, 5 element beam extension for the 5L-70cm to make it into a 10L-70cm 3 $70*
OAL MP-1.5 OAL Mast ClampRugged mast clamp for the square boom Old Antenna Lab 10L-70cm or 5L-70cm beams. 3 $35*
OAL Little Wheel OAL WheelAntenna, Old Antenna Lab, 70cm Horizontal omni, N jack.
Wheel antennas are very popular for high altitude balloons, rockets and ham satellite work.
3 $70*
OAL Dual Stacked Wheels Antenna, 3 dBd Horizontal omni, specify 70cm frequency, comes with splitter. OAL $215*
OAL 7CP-70cm OAL 7CP-70cm antennaAntenna, Old Antenna Lab, 7 element circular polarized beam, N jack.
Can be hand held for manually tracking ham satellites, balloons, rockets, R/C aircraft or mounted to a mast.
3 $160*
DSFO-ATV25 DSFO ATV-25-70cm antennaAntenna, Directive Systems, 25 element beam
For the serious ATV DXer 16+ dBd, gain
17' boom, center mount, 50 Ohm type N jack.
3 $229*
X510NA Antenna, Diamond, 438-450 MHz/2 mtr, 9.5/6.1 dBd omni vertical, 17.2', N jack. 3, 6 $209*
X510NJ Antenna, Diamond, 428-442 MHz/2 mtr, 9.5/6.1 dBd omni vertical, 17.2', N jack. 3, 6 $219*
RH3 RH3 antennaAntenna, Diamond, 2m/70cm, BNC, 1.75" mini-duck. Great for R/C when length is limited. 5 $32
MX72N Antenna Duplexer, Diamond, 2m/70cm lowpass/highpass 5 $55
OAL 2X70cm 50 Ohm splitterAntenna Power Splitter/Combiner, 2 way, 50 Ohms, use on 70 or 23cm, N jacks. OAL $75*
OAL 4X70cm 50 Ohm splitterAntenna Power Splitter/Combiner, 4 way, 50 Ohms, use on 70 or 23cm, N jacks. OAL $85*

Click on
model number
for more info
33cm 902-928 MHz Band
Call your order to 1-626-447-4565
Catalog
Page
Price
Each
33cm Transmitting
TX33-.1s TX70-5s50-100 mW AM ATV Transmitter ready to go in a die cast aluminum enclosure. 5 channels 910.25, 911.25, 913.25, 919.25 & 923.25 MHz. Line and Mic audio inputs. 2 ft coax to downconverter incl. Same enclosure and features as the TX70-5s. Can drive the Downeast Microwave 3340PA amplifier to 40 Watts. 3 wks ARO. Price reduced 4 $399
We also suggest checking eBay and QRZ.com On Line Swapmeet for our old models and Down East Microwave for linear amplifiers.
33cm Receiving
TVC-9S TVC-4sDownconverter no longer available and we have no plans to make more. Check eBay and QRZ.com On Line Swapmeet for our old TVC-9x models. - -
Rch3 Rch3 receiverChannel 3 TV receiver gives analog video and line audio output when connected to our TVC-9G or TVC-9S Downconverter output. See our application note. 3 $89
33cm Antennas
OAL .9/1.2 Helix OAL helix antennaAntenna, dual 33/23cm circular polarized 15 turn helix, Old Antenna Lab, 14.5 dBdc, single 50 Ohm feed with N jack, end mtg mast clamp, 36 inches long 4 $210*
OAL Nano Wheel OAL Wheel antennaAntenna, Old Antenna Lab, Horizontal omni 4 $70*
OAL Dual Stacked Nano Wheels Antenna, 3 dBd Horizontal omni, specify 33cm frequency, comes with hardline phasing harness. OAL $250*
OAL 2X33cm 50 Ohm splitterAntenna Power Splitter/Combiner, 2 way, 50 OhmsOAL $75*
OAL 4X33cm 50 Ohm splitterAntenna Power Splitter/Combiner, 4 way, 50 Ohms OAL $85*
2424LYRM antennaDirective Systems 3318LYARM, 14.4 dBd, 6' boom loop Yagi beam, N jack.
Contact them directly at 1-703-754-3876 or western rep The Olde Antenna Lab 1-303-841-1354
call

Click on
model number
for more info
23cm 1240-1300 MHz Band
Call your order to 1-626-447-4565
Catalog
Page
Price
Each
23cm Transmitting
TX23-.1s TX70-5s50-100 mW AM ATV Transmitter ready to go in a die cast aluminum enclosure. 4 channels 1253.25, 1265.25, 1277.25, 1289.25 MHz. Line and Mic audio inputs. 2 ft coax to downconverter incl. Same enclosure and features as the TX70-5s. Can drive the Downeast Microwave 2330PATV amplier to 30 Watts. 3 wks ARO. Price reduced 4 $399
We also suggest checking eBay and QRZ.com On Line Swapmeet for our old models and Down East Microwave for linear amplifiers.
23cm Receiving
TVC-12S TVC-4sDownconverter no longer available and we have no plans to make more. Check eBay and QRZ.com On Line Swapmeet for our old TVC-12x models. - -
Rch3 Rch3 receiverChannel 3 TV receiver gives analog video and line audio output when connected to our TVCX-12S downconverter board or TVC-12S Downconcerter if special ordered for ch3 output. See our application note. 3 $89
23cm Antennas
OAL TCR-23cm 23cm Corner ReflectorAntenna, Corner Reflector, 8 dBd, N jack 4 $115*
OAL 1.2/2.4 Helix OAL helix antennaAntenna, dual 23/13cm circular polarized 15 turn helix, Old Antenna Lab, 14.5 dBdc, single 50 Ohm feed with N jack, end mtg mast clamp, 24 inches long 4 $210*
OAL Mini Wheel OAL Wheel antennaAntenna, Old Antenna Lab, Horizontal omni 4 $70*
OAL Dual Stacked Mini Wheels 23cm stacked miniwheelsAntenna, 3 dBd Horizontal omni, specify 23cm frequency, comes with hardline phasing harness. OAL $175*
OAL 2X70cm 50 Ohm splitterAntenna Power Splitter/Combiner, 2 way, 50 Ohms, use on 70 or 23cm OAL $76*
OAL 4X70cm 50 Ohm 4X splitterAntenna Power Splitter/Combiner, 4 way, 50 Ohms, use on 70 or 23cm OAL $85*
2424LYRM antennaDirective Systems 2424LYRM, 16.2 dBd, 6' boom loop Yagi beam, N jack
Contact them directly, 1-703-754-3876 or western rep The Olde Antenna Lab 1-303-841-1354
call

Click on
model number
for more info
13cm 2390-2450 MHz Band
Call your order to 1-626-447-4565
Catalog
Page
Price
Each
13cm Receiving
13FMR-1 13FMR-1 receiverFM ATV receiver, 16 channels - primary 2398, 2417, 2430, 2441.5 MHz plus 2407, 2410, 2413, 1418, 2420, 2425, 2428, 2432, 2433, 2434, 2435 and 2442 MHz slide switch selected. 5.5 MHz sound or add $10 for 6.0 MHz sound. Video and line audio outputs, with 12V ps, rubber duck ant and SMA to N jack ext antenna adaptor. 4 $179
13cm Antennas
OAL 1.2/2.4 Helix OAL helix antennaAntenna, dual 23/13cm circular polarized 15 turn helix, Old Antenna Lab, 14.5 dBdc, single 50 Ohm feed with N jack, end mtg mast clamp 4 $210*
OAL Micro Wheel OAL Wheel antennaAntenna, Old Antenna Lab, Horizontal omni 4 $70*
OAL Dual Stacked Micro Wheels Antenna, 3 dBd Horizontal omni, specify 13cm frequency, comes with hardline phasing harness. OAL $175*
DC24 dish antennaSorry, we no longer stock the Andrews dish. We suggest the Laird Technologies DC24 - contact them directly

Click on
model number
for more info
ATV Repeater modules
Call your order to 1-626-447-4565
Catalog
Page
Price
Each
ATV Repeater System Design - down load and read this application note before you start. Example ATV repeater systems with component list, prices and sources. Also see the ATV for Public Service app note for info on building a portable ATV repeater in a milk crate. Our application note web page has info, parts, sources and price examples for both an Inband and a Crossband ATV repeater.
Repeater Controllers

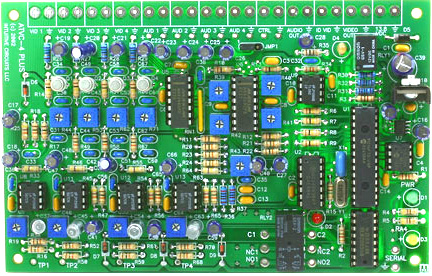

ATVC-4 Plus ATVC4+ controllerATV Repeater Controller board by Intuitive Circuits, DTMF selectable 4 video and audio inputs, ID and timers for ATV repeaters that want to expand with multiple inputs and links. 6 $349

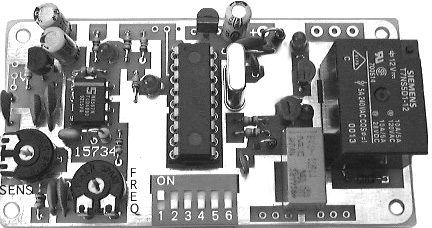

VOR-3 VOR-3 boardVideo Operated Relay, senses horizontal sync to key relays for DC power and ID/receive video.
Makes a simple ATV repeater or link single video controller.
6 selectable modes: Repeater, Transmit Test, Continuous ID, Beacon, Video Operated Relay, and External RS-232 control.
Price reduced $10.
6,
Special
Price
Reduced
$69

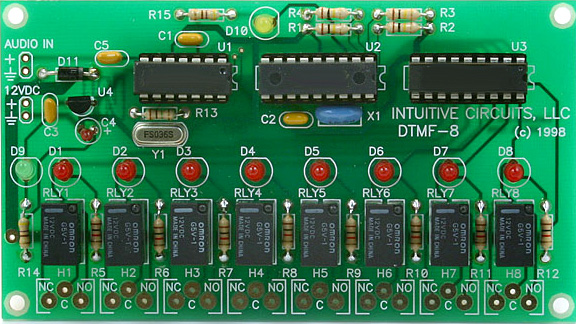

DTMF-8 DTMF-8 boardDTMF Decoder board, 8 momentary & latching 1A relays
Use for remote control of repeaters, pan and tilt cameras, etc., via DTMF tones.
6 $119
ENC-16 ENC-16 boardPackaged DTMF Encoder & key pad puts tones on transmitter audio 6 $109
Receivers
AM ATV use one of our downconverters connected to the Rch3 receiver
TVC-4S TVC-4sDownconverter no longer available and we have no plans to make more. Check eBay and QRZ.com On Line Swapmeet for our old TVC-4x models. - -
TVC-9S TVC-4sDownconverter no longer available and we have no plans to make more. Check eBay and QRZ.com On Line Swapmeet for our old TVC-9x models.. - -
TVC-12S TVC-4sDownconverter no longer available and we have no plans to make more. Check eBay and QRZ.com On Line Swapmeet for our old TVC-12x models. - -
Rch3 Rch3 receiverChannel 3 TV receiver gives analog video and line audio output when connected to our ATV downconverters with CH3 output .
See our application note.
3 $89
13FMR-1 13FMR-1 receiverFM ATV receiver, 16 channels - primary 2398, 2417, 2430, 2441.5 MHz plus 2407, 2410, 2413, 1418, 2420, 2425, 2428, 2432, 2433, 2434, 2435 and 2442 MHz slide switch selected. 5.5 MHz sound or add $10 for 6.0 MHz sound. Video and line audio outputs, with 12V ps, rubber duck ant and SMA to N jack ext antenna adaptor. 4 $179
Transmitters
TX70-5s TX70-5s>4W AM ATV Transmitter.
Rugged die cast aluminum enclosure.
Specify you want to use it as a repeater transmitter at time of order
4 channels 439.25 (cable ch 60), 434.0, 427.25 & 426.25 MHz.
421.25 can be special ordered.
Line and Mic audio inputs. Type N jack 50 Ohm antenna output.
manual.
1 $499
TX33-.1s TX70-5s50-100 mW AM ATV Transmitter ready to go in a die cast aluminum enclosure. 5 channels 910.25, 911.25, 913.25, 919.25 & 923.25 MHz. Line and Mic audio inputs. 2 ft coax to downconverter incl. Same enclosure and features as the TX70-5s. Drives the Downeast Microwave 3340PA amplifier.
3 wks ARO
4 $449
TX23-.1s TX70-5s50-100 mW AM ATV Transmitter ready to go in a die cast aluminum enclosure. 4 channels 1253.25, 1265.25, 1277.25, 1289.25 MHz. Line and Mic audio inputs. 2 ft coax to downconverter incl. Same enclosure and features as the TX70-5s. Can drive the Downeast Microwave 2330PATV amplifier.
3 wks ARO
4 $449
We suggest checking eBay and QRZ.com On Line Swapmeet for our old 33 and 23cm transmitter models and contact Downeast Microwave DEMI for compatible 33, 23 and 13cm linear amps (908) 996-3584
Antennas
OAL Stacked Wheels 23cm stacked miniwheelsAntenna, Horizontal omni, see antenna section in the respective bands above for single, dual and quad wheel specs and prices. OAL various*
For vertical gain omni antennas we suggest: 428-442 MHz Diamond X510NJ, 438-450 MHz Diamond X510NA, 33cm Comet KP-20, 23cm GP21, 13cm GP-24 available from your favorite stocking ham store.
VSB Filters and Duplexer
Order filters directly from DCI - 1-800-563-5351
DCI-8P Filter, VSB 8 pole, 200W, N jacks, specify video carrier frequency on 70, 33 or 23cm, specify stacked or 19" rack mount.
6 $439

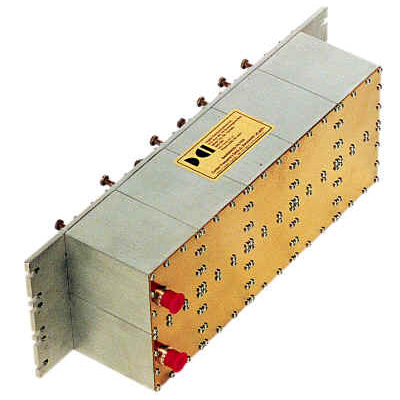

DCI-10P DCI 10 pole filterFilter, VSB 10 pole, 200W, N jacks, specify video carrier frequency on 70, 33 or 23cm. Specify stacked or 19" rack mount.

Order filters directly from DCI - 1-800-563-5351
6 $499
DCI-Duplexer Duplexer, Filter, VSB 10 pole tx, 8 pole rx, 200W, N jacks, specify video carrier frequencies on 70cm, specify stacked or 19" rack mount 6 $1088

Click on
model number
for more info
MISC., Video Overlay Boards, Connectors, etc.
Call your order to 1-626-447-4565
Catalog
Page
Price
Each
We stock the Video Overlay boards from Intuitive Circuits listed below
OSD-ID+w/c OSD-ID+boardVideo text gen/overlay board, suggested for ATV Repeater, tower cam or public service event ID and info. Program up to 30 characters per each of 13 rows from on board buttons or compose, save and download text overlay from your PC computer RS 232 out jack, then unplug because new screen text is saved on OSD board non-volitile memory. Overlay text on your NTSC or PAL camera video or select on board color background screen generator. Software and DB9 cable included. Best when a full screen video generator is required or when many text changes are often made which can be recalled from computer memory. Hybrid chip may be unplugged and used by itself after programing. Req. 7 to 14 Vdc. 7 $129
OSD-ID+w/e OSD-ID+w/eSame as the board above but comes packaged in a 4 1/4" x 3 1/2" x 1 1/4" enclosure. 7 $249
OSD-GPS+w/c OSD-GPS screen shotOSD-GPS+ boardVideo overlay ID board (enter up to 10 letters) and GPS speed, heigth, heading, latitude, longitude, time and programable distance and bearing to waypoint like your launch point. NTSC or PAL video input. Accepts NMEA or RS-232 data input from your GPS receiver. We suggest the Garmin GPS-15 or 18. Hybrid chip may be unplugged and used by itself after programing. Req. 7 to 14 Vdc.
Click on the screen shot from a R/C aircraft with ATV at right to enlarge.
7 $139
GeoStampGeoStampPackaged version with the OSD-GPS+w/c board 7 $279
OSD-232+w/c OSD-232 board Video text overlay board connects to PC or micro controller like a Basic Stamp II using RS232. Similar to OSD-PC but must always be connected to RS232 source. NTSC or PAL video input. Hybrid chip may be unplugged and used by itself. Req. 7 to 14 Vdc. 7 $119
VideoStamp+ Video StampPackaged version with the OSD-232+ board 7 $249
OSD-KB This is a standalone on-screen display board that overlays user defined text, entered through a standard PS/2 keyboard, onto an incoming NTSC video source. Every position on the 28 column by 11 row screen (308 characters total) can contain a user typed character. All information is stored in non-volatile eeprom memory so even with loss of power OSD-KB retains all screen information. 7 $119
OSD-SSM OSD SSM screenOSD-SSM boardVideo Signal Strength or voltage meter generator/overlay board. Connect to receiver AGC line or DC voltage between 0 and 10V to view on the video screen 7 $139
Miscellaneous Stuff - also see our Specials & Surplus page
GVM-1 GVM-1 boardFM Video Modulator board for varicap modulating10 GHz Gunnplexer transmitters plus many other uses - download the app note. Quantity specials: 2 for $35, each additional $15 8,
Special
Price
Reduced
$20
Crystal CrystalHC-50U Plug-in type crystal used in our 70cm transmitters are all gone.
Click on Crystal on the left for our remaining stock of left over crystals used on our older transmitters and downconverters - $5.
9 $5
12V500MAR 12V wall plug PSRegulated 12Vdc at up to 500 mA wall plug power supply. Has 2.1x5.5mm DC plug that fits our TVC downconverters. New $10
9V1000MARS 9V wall plug PSRegulated 9Vdc at up to 1A wall plug power supply. Has 2.1x5.5mm DC plug - see the ATV Pouch app note.
Use with the Videolynx 434 and Z70A transmitters and CG35A camera.
New $15
Bias-T(p) Bias TBias T Kit for adding DC on the coax line to power antenna mounted preamps Specials $15
Metal Can 2x2x.88" cad plated solderable metal can with lid, great for packaging small circuits like we did with the Bias-T and pre-emphasis and de-emphasis networks - PEK & DEK. See
Specials
$1
100 Ohm 100 Ohm potPanel mount 100 Ohm carbon pot - video gain control Specials $3
RF Connectors and Adaptors
Njsh single hole N jackType N female single 5/8" hole chassis jack - $6
Np/BNCj N male to BNC female adaptorType N male plug to BNC female adaptor. Connect to small portable beam antennas with short lengths of RG58 and BNC plugs - $6
Np/Fj N male to F female adaptorType N male plug to F female adaptor - $3
Np/UHFj N male to UHF female adaptorUG146, Type N male plug to UHF female adaptor - $6
Np/Np double N adaptortUG57, Type N double male plug adaptor - $5
BNCp/RCAj BNC male to RCA female adaptorBNC male plug to RCA female adaptor. Use in video line between CG35 camera and Videolynx Z70A ATV transmitter. - $3
Fp/Nj F plug to N jack adaptorF plug to N jack adaptor - use for cable ready TV directly to 70cm antenna low loss 50 Ohm coax. Specials $3
SMAp-Nj SMA plug to N jackSMA plug to N jack adaptor - use from Videolynx VM-70X to 70cm antenna low loss 50 Ohm coax. - $6
SMAp/UHFj SMA plug to UHF jackSMA plug to UHF jack adaptor - use from Videolynx VM-70X to 70cm antenna with PL259 UHF plug or coax. - $6
SMAp-10 SMA plug to 10inch pigtailSMA plug to pigtail 10" long coax - $6
RG1746 ft 50 Ohm small .1" dia coax for module RF interconnects 5 $3
Ft Cap feedthru cap1000 pF feedthru capacitor 5,
Special
Price
Reduced
$3
Cameras: We suggest ATV Research - 800 392-3922. They have a wide variety video cameras that will work with our ATV transmitters available at wholesale prices to licensed radio amatures.

*Price of drop shipped items from the manufacturer includes shipping in the contiguous USA.
Purchasers of Amateur Radio band transmitters and receivers in the USA and Canada must be licensed Technician class or higher - we verify in the Callbook, FCC or QRZ web site - and for legal uses per 47 CFR part 97 of the FCC Rules. See info on getting a Ham license and legal uses.

Go to:
Plug and Play   Applicatiion Notes   Specials   Legal Uses   ATV Related Links


P. C. Electronics, 2522 Paxson Lane, Arcadia CA 91007 USA. Our address is for postal mail only, we do not have a walk in store
The domain of this page is www.hamtv.com - copyright ©2014 W6ORG, all rights reserved. Webmaster contact is ATVinfo at hamtv dot com
